PRICES INCLUDE IMPORT DUTY, BROKERAGE FEES & TAXES, AND INTERNATIONAL SHIPPING
Min. tube ID of 38mm required
Specifications
Vacuum Leak Rate UHV <5x10-10 mbar l/s

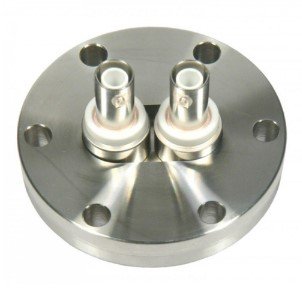

Size or DN DN40CF (2 ¾” OD flange)
Compliance SHV 5kV 50 ohm
Vacuum Seal Ceramic
Body Material Stainless Steel
Voltage Rating 6 kV DC
Max Current 3A per pin
Temperature Range -200°C to 300°C (Air side Connector -65oC to 165oC)
Impedance 50 ohms
Number of Pins 3
If you would like us to arrange a quote for you, please apply your details here.
