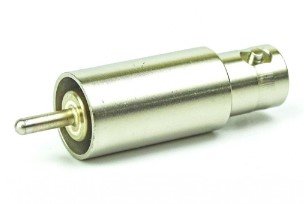

Specifications
Vacuum Leak Rate UHV <5x10-10 mbar l/s
Size or DN DN16CF (1.33” OD flange)
Compliance MHV 50 ohm
Pin Gender Air Female/Vacuum Male
Conductor Material Stainless steel 304
Vacuum Seal Ceramic
Body Material Stainless Steel
Voltage Rating 5 kV DC
Max Current 3A per pin
Magnetic Permeability Not constant
Temperature Range -200°C to 250°C (Air side Connector -65oC to 165oC)
Impedance 50 ohms
Number of Pins 1
Conductor Diameter 2.4mm
