PRICES INCLUDE IMPORT DUTY, BROKERAGE FEES & TAXES, AND INTERNATIONAL SHIPPING
More flange configurations available on request
Vacuum Leak Rate UHV <5x10-10 mbar l/s

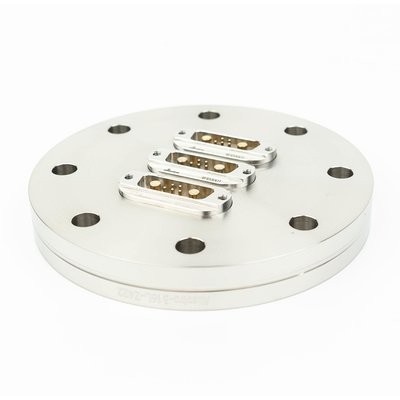

Size or DN DN63CF (4 ½ " OD flange)
Compliance Sub-D, DIN 41652, MIL-C-24308
Pin Gender Male
Vacuum Seal Glass ceramic
Body Material Stainless Steel 316L
Voltage Rating 500V DC
Max Current Power Pin: 20A Standard Pin: 5A
Temperature Range -200°C to 230°C
If you would like us to arrange a quote for you, please apply your details here.
