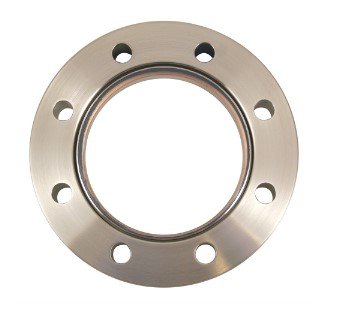

Vacuum Leak Rate UHV <5x10-10 mbar l/s
Size or DN DN63CF (4 ½ " OD flange)
Compliance ISO 3669:2017
Vacuum Seal Annealed Cu Gasket
Body Material Stainless Steel 304
Temperature Range -100°C to 200°C
Transmission 90% in visible range
Inside Diameter 68mm
Flatness λ/4 @632nm
Coating BBAR 425-760
Parallelism <10 arc sec
Surface Finish 20-10 Scratch-dig
Optical Material Fused Silica grade A, 3D
